Reolink recording: direct camera, NVR or Home Hub?

Choose the route before adding storage

Start with one camera and one intended task. For a live view, a standalone camera may expose its own local stream. A recorder can collect streams and save them on another device. A Home Hub can provide a supported route for cameras that do not expose the same protocols directly. The address and account used by the viewer depend on which device provides the stream.

Reolink's protocol matrix distinguishes these cases. Preserve its conditions rather than treating a manufacturer name as a compatibility result.

The current matrix gives a separate exception for the second-generation battery doorbell in wired power mode, and a wired-network condition for TrackMix Wired LTE. Those exceptions do not extend to every battery doorbell or every LTE model. An exact hardware and firmware match is still required.

NVR example: RLN8-410 hardware matters

The RLN8-410 product page identifies N7MB01 hardware in its current channel expansion statement. It distinguishes eight PoE or plug-in Wi-Fi cameras from additional battery-camera channels. Older RLN8-410 units cannot inherit that statement simply because the model name is the same.

The inspected specification lists eight PoE ports, a 25 W maximum per port and IEEE 802.3af/at support. It also lists a shared storage ceiling with per-drive limits. Confirm the actual hardware's drive and camera support before ordering a recorder, an extra disk or a mixed camera system. A bundle may include a different disk size from the maximum the recorder supports.

For older H3MB16, H3MB02 and H3MB17 NVR hardware, Reolink's protocol matrix restricts 4K RTSP to the fluent stream. A camera's standalone clear stream and its stream through that recorder are different choices. Record the channel number and configured stream profile, keeping passwords out of shared notes.

Home Hub example: compatibility has exceptions

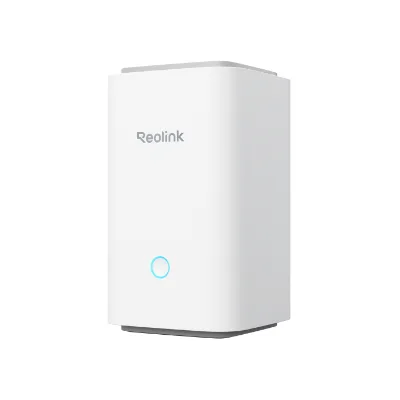

The Home Hub compatibility page describes supported plug-in and PoE cameras with a UID beginning 9527, then names exceptions. These include Lumus IPC_325C7, E1 Zoom IPC_515SD6, cameras without a UID and refurbished units whose shipped hardware cannot be guaranteed.

Battery cameras have their own hardware and firmware table. Check the actual model rather than treating a current series name as sufficient. The standard Home Hub is listed for eight cameras total; Home Hub Pro channel limits vary by its hardware. The Home Hub family page is a family comparison, not evidence that every box has the same storage or power parts.

Choose a disk by exact model and recorder limit

Reolink's tested-disk list includes Seagate ST2000VX016 at 2 TB, ST4000VX015 at 4 TB and ST6000VX008 at 6 TB. These are specific surveillance-drive examples, subject to the recorder hardware's capacity limit. The list does not turn every SkyHawk capacity or every WD Purple product into a tested match.

The inspected current list does not establish an exact WD Purple model for this system. Keep that option unqualified until its exact drive and recorder documentation agree. External-drive support also needs the documented interface and its own power supply; Reolink explicitly distinguishes eSATA from the recorder's USB port for this purpose.

Verify the intended result

Test live video and saved recordings as separate tasks. First confirm that the selected recorder route is reachable and produces the expected stream. Then use the manufacturer's supported playback route to confirm recording and retrieval. CameraViewer physical-camera playback, camera controls and archive access remain untested.

Return to local storage for card-versus-recorder decisions, card compatibility for exact endurance combinations, and PoE requirements for the power path. These choices form one system; a valid part number alone does not prove the complete installation.
